M3

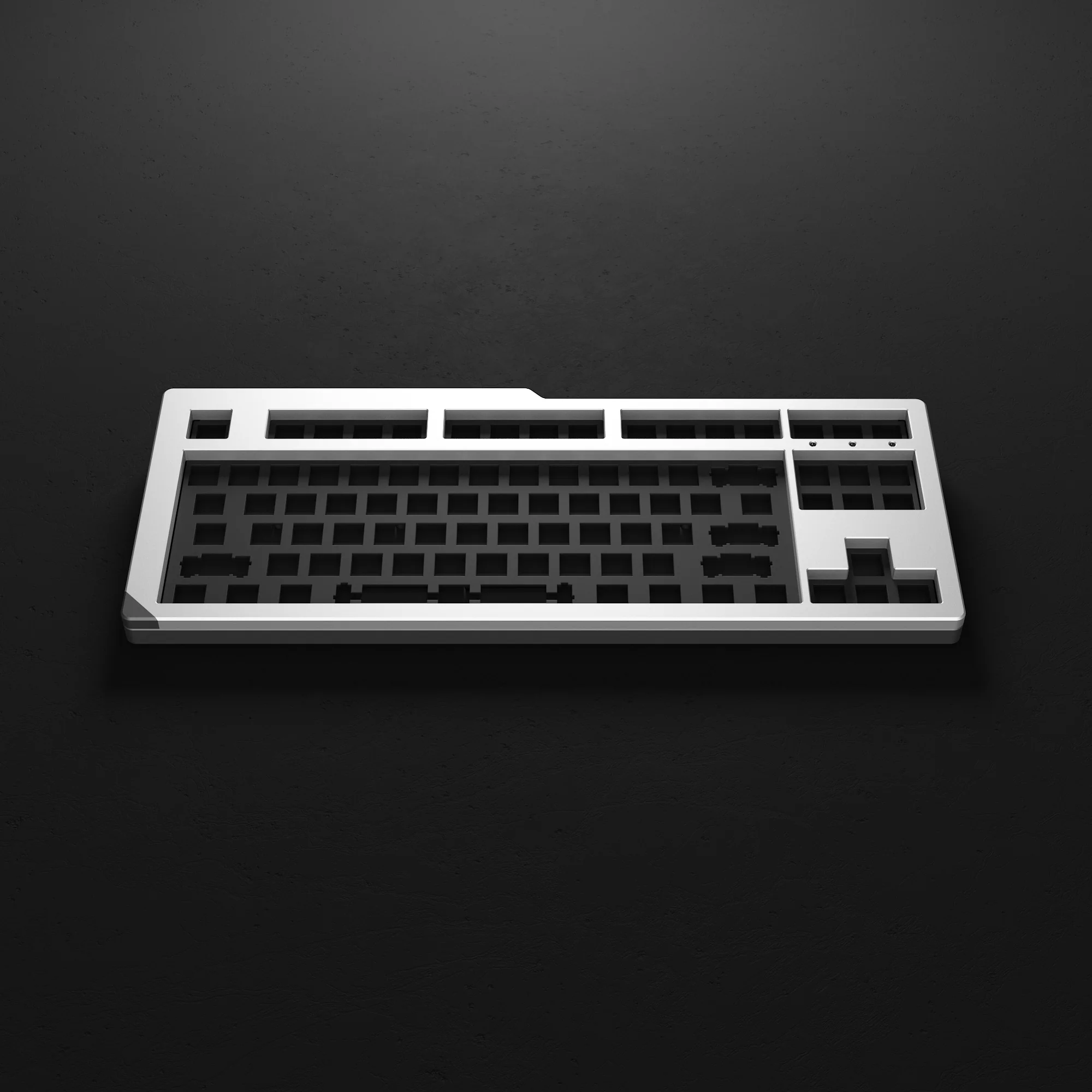

TKL 87-key aluminum DIY Kit.

TKL Tenkeyless keyboards come with 87 keys, a perfect layout without a number pad to balance size and functionality which helps give more desk space.

M Series QC Guide

Learn about what to expect with the order. MonsGeek provides its standard on how we manage aluminum finishes during QC process. Click icon on the left to download.

Stabilizers

PCB Mount/Screw-in stabilizers tend to vibrate less. M3 uses Akko transparent white stabilizers (un-assembled) with nylon housing in case users want to lubricate.

South-facing PCB

The south-facing PCB of the M3 avoids causing interference with Cherry profile keycaps, offering more compatibility and flexibility.

Customizable RGB

M3 offers approximately 18 preset backlight modes, which allow users to adjust the brightness and flowing speed levels. Moreover, it supports a wide range of RGB effects, with over 16.8 million colors available. Users can also install an upcoming JSON file to access even more lighting effects and configurations.

New Silver Accent

While M3 silver comes with golden accent, MonsGeek has picked the new silver accent on other models. MonsGeek will start to offer standalone accents for sale to better personalize each unit based on user preference.

N-Key Rollover

The N-Key Rollover technology allows all keys to work simultaneously and ensures every keystroke is recorded and prevents ghosting.

Engraved Back Design

M3 QMK version has adopted the new engraved back design with re-sized sticker for aethestics purposes.

QMK / VIA

MonsGeek M3 supports VIA for cross-platform (Linux/Mac/Windows) advanced keyboard configuration.

QMK is currently undergoing certification. Users who wish to implement it before the official pull request can download the source code.

This feature is exclusively for international version of M3.

Need More Foam?

Monsgeek has developed its own budget custom material that performs equally as well as poron. Meanwhile, MonsGeek M3 comes with an additional sponage case foam to reduce case ping.

*Disclaimer: Using thicker foam may reduce flex, whether to include it or not is down to your personal preference.

PET Insulation Layer

A PET insulation layer has been added to the bottom case in order to prevent any short circuit issues. It’s rare for these issues to occur but we want to add extra protection.

Accessories to Play With

Extra teflon pads included for users who wish to perform a force break mod.

Extra tape for users who wish to perform a tape mod.

MonsGeek includes a default 3mm custom-made foam for a balanced feeling. Disclaimer: the foam will affect the overall sound profile and flex.

More Plate Options Coming in May

For users who want a balanced feeling between sound and flex.

FR4

For the softest, flexiest typing feeling among existing options.

POM

Demonstration

123

Specifications
Reviews (0)

Model	M3 (international QMK ver)
Mount	Gasket
Case Material	Aluminum CNC
Color	Black/Silver/Purple
Compatible System	Mac & Windows & Linux
Connection	USB-C Wired
LED	RGB
Hotswap	Y
PCB Thickness	1.2mm
Plate	PC
Plate Foam	Y (MonsGeek Custom Material)
Switch Pad	IXPE
Case Foam	Y (MonsGeek Custom Material)
Drying Agent	Y
Tape	Y (not pre-installed)
Stabilizer	Akko Screw-in Stabilizer (pre-clipped, but not pre-installed, 42u+16.25u)
Force Break Mod Stripes	Teflon Pads (not pre-installed)
Software	VIA/QMK
Cable	Coiled Cable
Size	36.6cm14.6cm3.4cm
Barebone Weight	around 2000g
